Specifications
Flows to:
35 m3/h (154 gpm)
Heads to:
354 m (1161 ft)
Press. to:
40 bar (580 psi)
Temp:
180°C (356°F)
Refer to literature PS-120-1 at flowserve.com/library.
Description

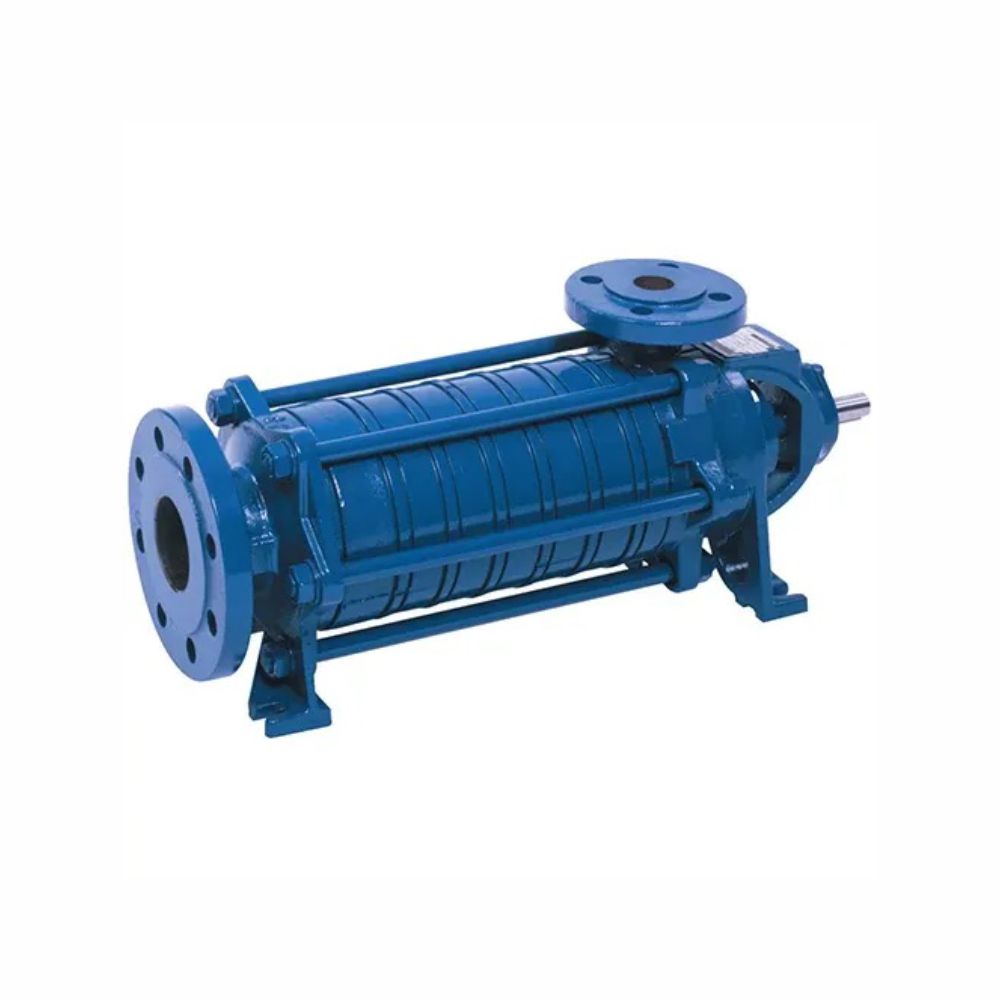

A centrifugal combined system, the CEH is self-priming and provides reliable pumping under unfavorable suction conditions. It is ideal for pumping liquids under vapor pressure, such as condensates, refrigerants and liquefied gases.
- Problem-free pumping in applications with NPSHA below 0.5 m (1.64 ft) due to centrifugal-combined system construction, which employs a centrifugal inducer
stage before the side channel stages to lower NPSHR - Excellent hydraulic efficiency assured by modular side-channel system with one to eight stages which permits precise configuration for operating parameters
- Low inventory carrying costs and simplified maintenance enabled by high degree of parts interchangeability between stages
