Specifications
Flows to:
1400 m3/h (6160 gpm)
Heads to:
250 m (820 ft)
Press. to:
25 bar (365 psi)
Temp:
-40°C to 400°C (-40°F to 752°F)
Refer to literature PS-10-31 at flowserve.com/library.
Description

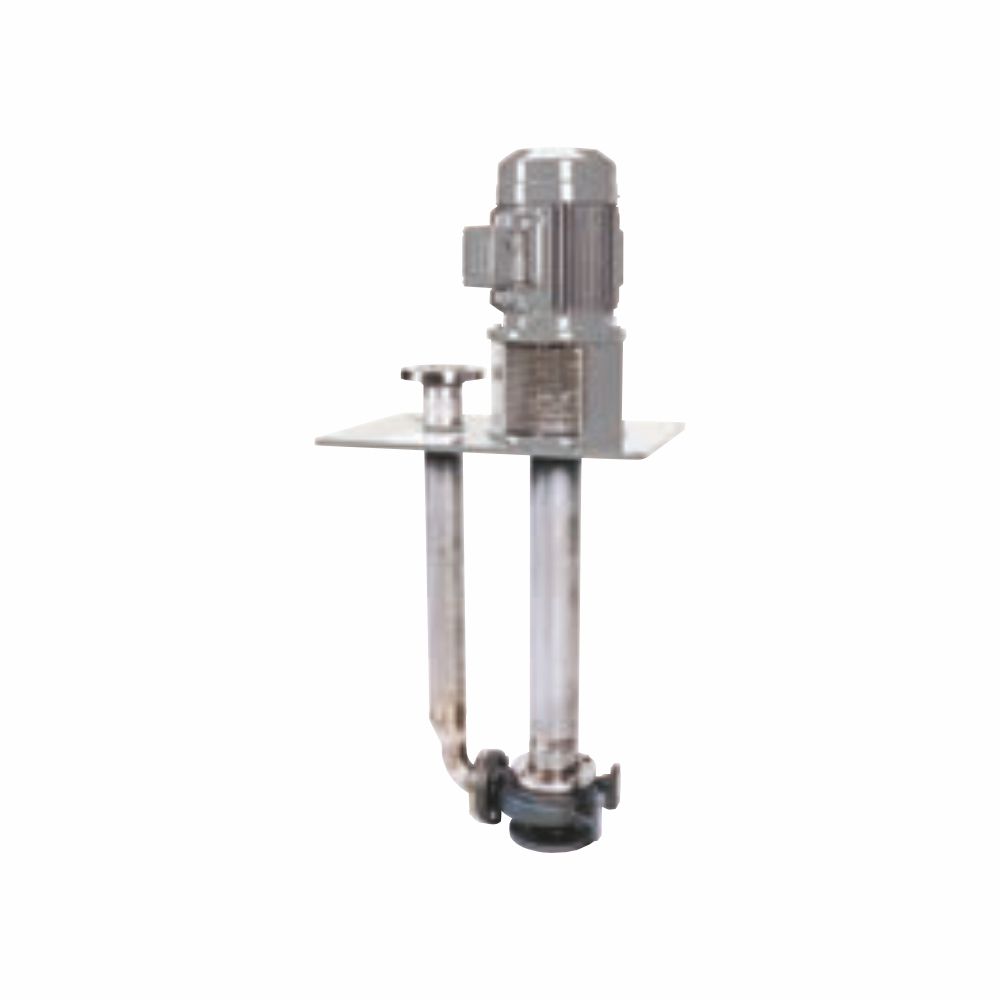

Compliant with ISO 5199, the CPXV chemical sump pump offers efficient and reliable service in a broad range of applications. Available with many ISO 13709/API 610 compliant features for oil and gas installations.
- Highly customizable, with more than 40 hydraulic wet-ends, numerous materials, multiple mechanical seal options and column lengths to 10 m (32 ft)
- High-efficiency performance delivered by standard front vane open-style impeller
- Ease of maintenance with axial adjustment of the heavy-duty thrust bearings made above sole plate level
- Fully jacketed molten sulfur configuration available
- Increased safety with Category 1 (Zone 0) ATEX configuration for explosive
atmospheres beneath the sole plate
