Specifications
Flows to:
5000 m3/h (22 000 gpm)
Heads to:
450 m (1500 ft)
Press. to:
100 bar (1450 psi)
Temp.:
to 450°C (842°F)
Refer to literature PS-20-4 at flowserve.com/library.
Description

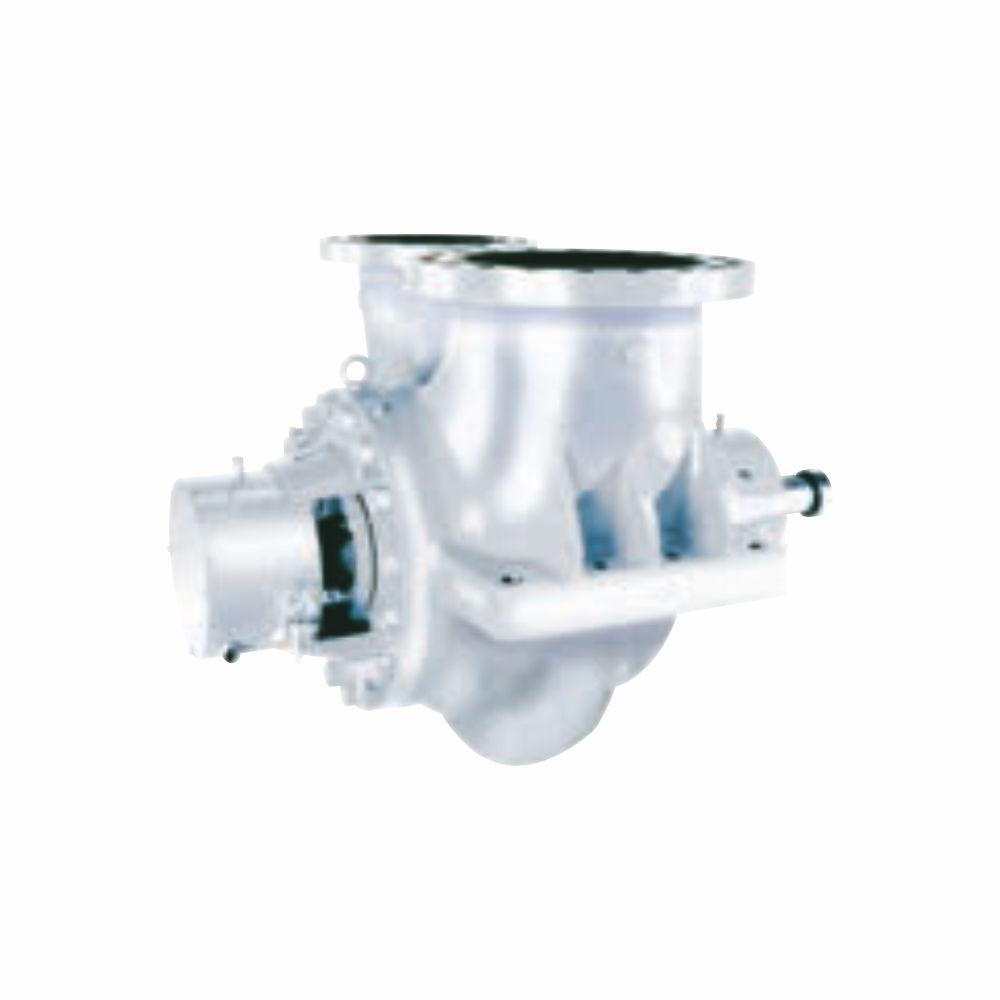

In full compliance with ISO 13709/API 610 (BB2) standards, the HDX centerline mounted pump with single- stage, double suction impeller and double volute casing with top nozzles is engineered for heavy process services.
- Increased uptime enabled by double suction impeller that minimizes thrust problems, reduces NPSHR, and allows mechanical seals to operate at equal and low pressure
- Excellent high-temperature performance provided by centerline mounting plus gasketing with metal-to-metal fit to ensure proper sealing and alignment
- Installation ease with top-top, side-top and side-side nozzle configurations available to meet any customer piping layout
- Safety and environmental compliance with ISO 21049/API 682 seal chambers
- Power recovery turbine configuration (HDX-TT) available
