Specifications
Flows to:
1400 m³/h (6160 gpm)
Heads to:
220 m (720 ft)
Press. to:
25 bar (362 psi)
Temp:
-80°C to 400°C (-110°F to 750°F)
Refer to literature PS-10-31 at flowserve.com/library
Description

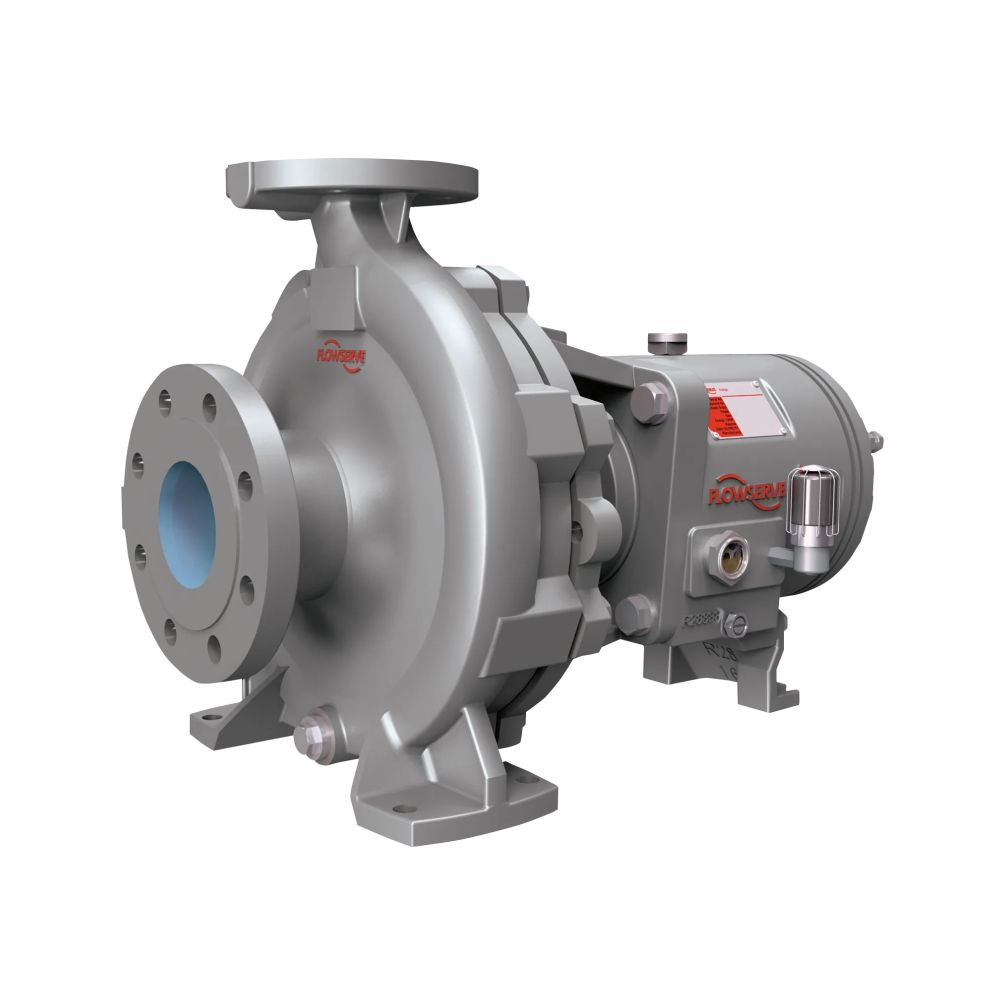

ISO 2858/5199 compliant pump for corrosive applications in chemical, hydrocarbon and pharmaceutical processing requiring unmatched reliability, outstanding hydraulic performance and increased pump availability.
- Lower total cost of pump ownership resulting from simplified maintenance and extended bearing and seal life associated with reverse vane impeller
- Increased reliability and mechanical seal life due to the ideal seal environment created by the SealSentry™ seal chamber
- Simplified maintenance with two-piece power end featuring self-contained bearing. housing and external impeller adjustment mechanism
- Optimal, predictable seal chamber pressure that is established after every impeller setting
