Specifications
Flows to:
13 600 m3/h (60 000 gpm)
Heads to:
1070 m (3500 ft)
Press. to:
100 bar (1450 psi)
Temp:
-73°C to 230°C (-100°F to 450°F)
Refer to literature PS-40-2 at flowserve.com/library.
Description

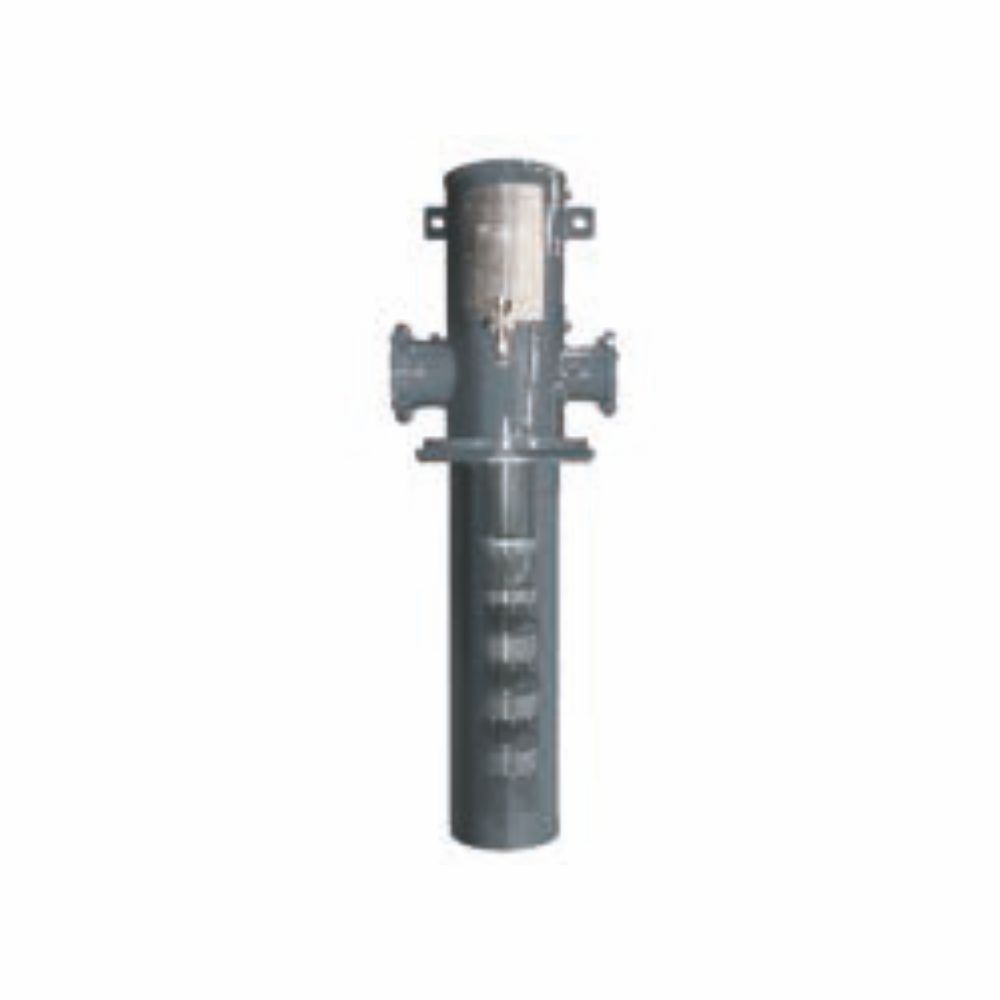

Diffuser-type, vertical turbine pump well-suited for closed system and low NPSH applications. Available in single or multistage units, as well as standard and ISO 13709/API 610 (VS6) compliant designs.
- Broad application versatility due to extensive hydraulic coverage plus wide variety of configurations, constructions and materials to suit application requirements
- Lower installation costs with low NPSH first-stage impeller that reduces suction can length
- Lower operating costs from available aftermarket rebowl services that revitalize aged VPCs — including competitor models — to reduce power consumption, downtime and maintenance costs
