Specifications
Flows to:
3000 m3/h (13 200 gpm)
Heads to:
2000 m (6560 ft)
Press. to:
200 bar (2900 psi)
Temp:
-200°C to 350°C (-328°F to 660°F)
Refer to literature PS-40-8 at flowserve.com/library.
Description

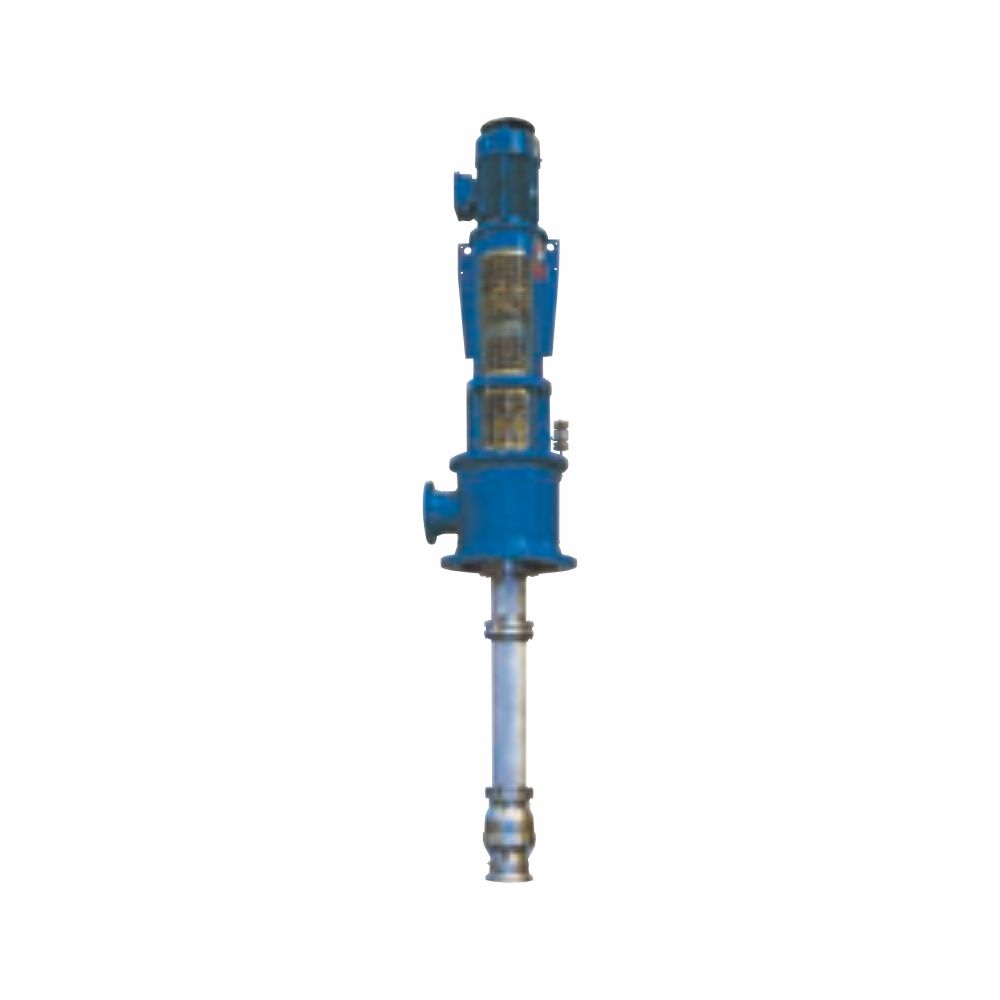

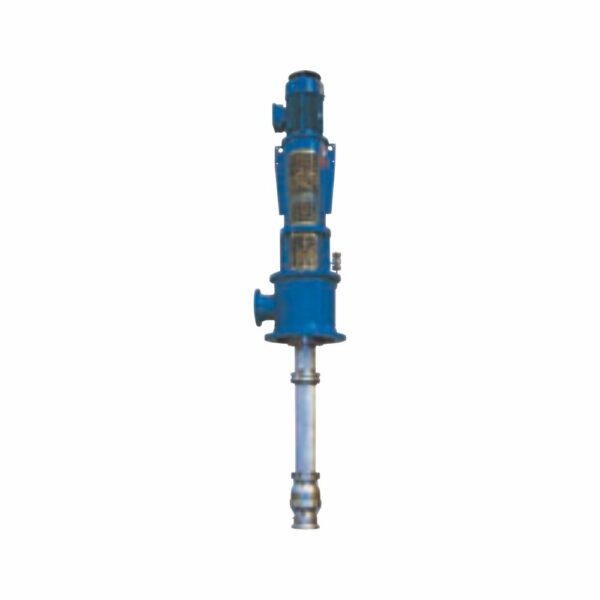

Highly engineered heavy-duty, multistage vertical pump for wet-pit or deep well applications requiring continuous, unspared duty in a variety of severe services. Meets or exceeds ISO 13709/API 610 (VS1).
- Maximum design and operating flexibility enabled by modular design system along with mixed or radial flow hydraulics, which enable precise configuration
- Unspared reliability owing to under-critical stiff shaft design, separate axial thrust bearing assembly and pressure-containing parts certified to international standards
- Economical retention of operating efficiency and mechanical stability with casing and impeller wear rings
- Reduced maintenance with flanged spacer-type coupling that permits easy access to the thrust bearings and mechanical seals without disturbing the motor
