Specifications
Flows to:
300 m3/h (1320 gpm)
Heads to:
1560 m (5116 ft)
Press. to:
2200 bar (2900 psi)
Temp:
to 425°C (800°F)
Refer to literature PS-30-6 and PSS-30-6.1 at flowserve.com/library.
Description

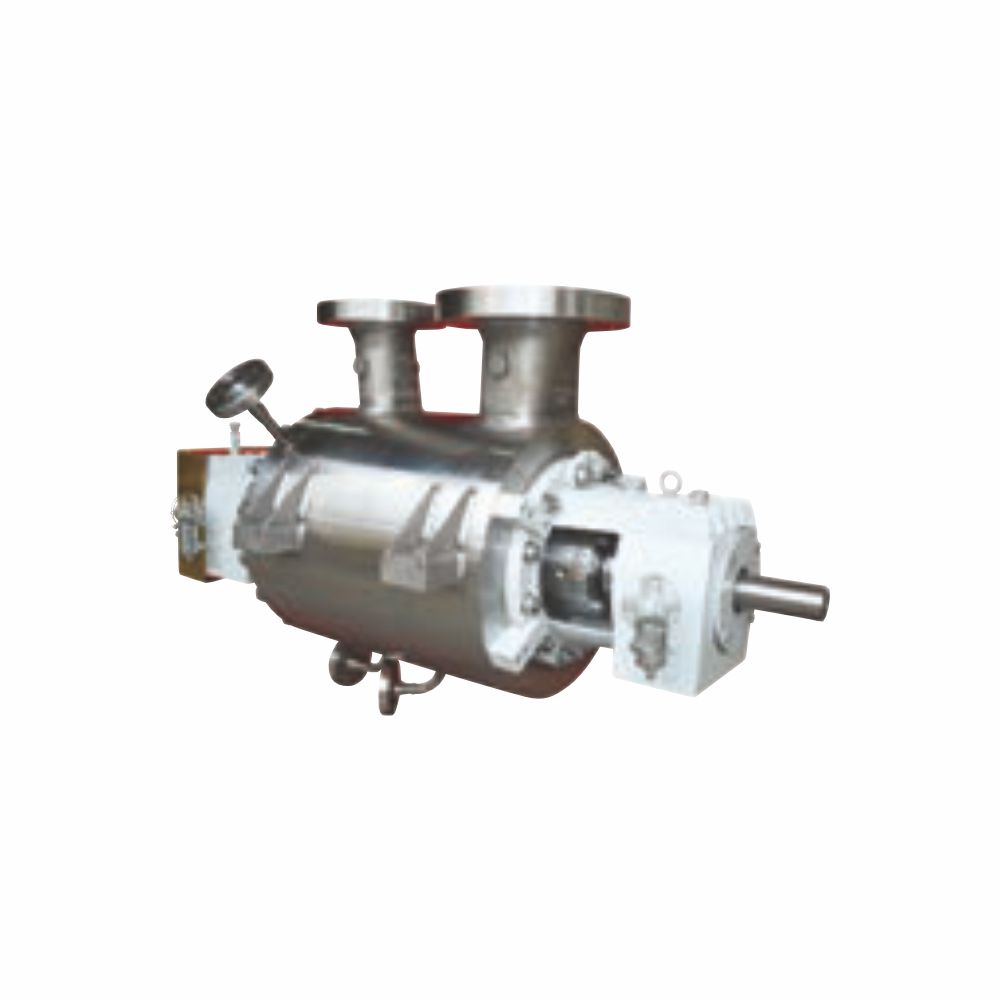

Based on ISO 13709/API 610 design requirements, this diffuser-casing barrel pump is the first choice for demanding applications in refineries, chemical and petrochemical plants, liquefied gas stations and boiler feed service.
- Space-saving design with minimal maintenance downtime due to compact and convenient cartridge-style construction
- Longer service life via a generous shaft diameter that results in low shaft deflection to increase bearing, mechanical seal and wear ring life
- Lower maintenance costs resulting from renewable wear rings on all casings and impellers to permit economical restoration of running clearances
- Emissions control with ISO 21049/API 682 seal chambers
- Low-flow, high head stability with Barske-style impeller (WXB-B)
